Commercial Hard Candy Making Machines
From pilot trials to high-volume production, our commercial hard candy making machines support cooking, depositing, die-forming and packaging for functional or medicated hard candies and lollipops.
Join OEMs, brands and startups using SaintyCo hard candy machines — from compact depositors to fully automatic depositing and die-forming lines. Get precise forming, fast cycles and stable output with batch accuracy. Handle multi-flavor runs and produce clear, striped, layered, center-filled, sugar-free, or lollipops (stick insertion) with quick changeovers, up to 600 kg/h.
Discuss Your Hard Candy Production Requirements
Tell us your product and target output — we’ll help match the right hard candy production or packaging equipment to your needs.
Pilot-Scale Hard Candy Depositors
Ideal for lozenges, lollipops*, or small-batch hard candy runs. Outputs up to 15,000 pcs/hr (DM-50X) and 6,000–10,000 pcs/hr (DM-20S) with consistent dosing, less scrap, and fewer steps than traditional forming; typical piece weight 2–8 g. Works with metal or silicone molds, and molds can scale to future full-auto lines.
Quick mold changeovers, index conveyor (DM-50X) for automatic mold advance, and integrated demolding (DM-20S) keep runs smooth and repeatable; 1–2 people can run it easily.
Built in food-grade stainless steel, on wheels, with a simple touchscreen HMI — ideal for labs, pilot lines, or first automation.
*Lollipops require a lollipop former plus stick insertion unit.
Entry-Level Hard Candy Depositing Machines
DM-50X ServoDose Mini Hard Candy Depositor
DM-20S 2-in-1 Lab-Scale Hard Candy Depositor

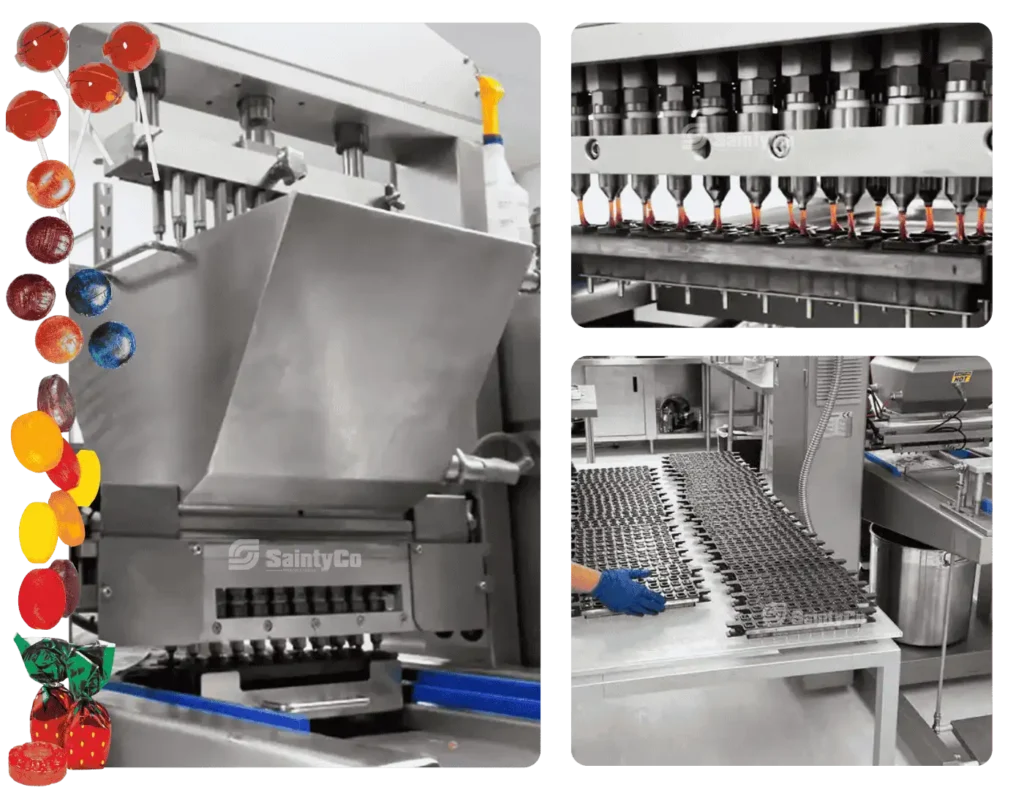

Commercial Hard Candy Depositing Lines
Depositing Controls and Product Configuration
Equipped with PLC and an LED touch panel, the system ensures stable syrup flow and precise dosing. Servo systems and dosing pumps handle color, flavor, and acid injection. Quick mold changeovers support versatile formats.
Line Layout and Depositing Options
Tell us your goals. You can also choose from options such as
- Design L-, U-, or straight-line layouts to fit factory space.
- Control steam automatically for stable microfilm cooking.
- Use center-filling or two-color striping nozzles to expand product variety.
- Integrate in-line pre-mixing and dosing for smoother production flow.
200+ candy brands and OEMs clients worldwide trust SaintyCo for reliable hard candy production — batch after batch.
Depositing Line Models and Capacities
HC-150 Hard Candy Depositing Line
Power Supply: 30kw
Steam Consumption: 250kg/h
Air Consumption: 0.2m³/min | Air Pressure: 0.4~0.6MPa
Length: 15m | Weight: 3500kg
HC-300 Hard Candy Depositing Line
Power Supply: 40kw (Steam heating), 260kw (Electric heating)
Steam Consumption: 500kg/h
Air Consumption: 0.2m³/min | Air Pressure: 0.4~0.6MPa
Length: 18m | Weight: 5500kg
HC-600 Hard Candy Depositing Line
Power Supply: 40kw (Steam heating), 260kw (Electric heating)
Steam Consumption: 500kg/h
Air Consumption: 0.2m³/min | Air Pressure: 0.4~0.6MPa
Length: 18m | Weight: 5500kg
Molds, Trays and Ancillary Equipment

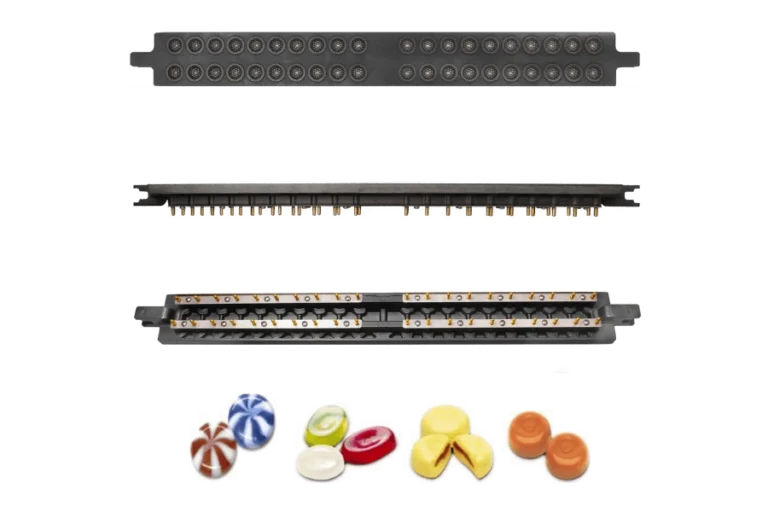

Metal Molds for Hard Candy Depositing
Silicone Molds for Hard Candy Depositing
Hard Candy Trays and Dollies
Commercial Hard Candy Die-Forming Machines
Start trials on the SaintyCo HC-200 drop roller candy machine – a compact, low-cost solution for small batches, featuring quick die swaps to run multiple shapes on a single unit.
When demand grows, move to the DF-Series automatic die-forming line that integrates an auto-weighing system, a candy cooking machine, a candy batch roller, a candy rope sizer, a candy forming machine, and a cooling/vibration tunnel for consistent shapes and smooth release at 100–400 kg/h. Swap dies for new shapes or add a lollipop former; central-fill available. Hygienic stainless and a simple HMI keep cleaning fast and output steady shift after shift.
Entry-Level Hard Candy Die-Forming Equipment
HC-200 Candy Drop Roller
- Siemens motor + Siemens inverter for precise speed control
- CNC custom rollers for rope-formed candies and dragees
- Specialised tabletop equipment for small-format candy industries, laboratories, and pilot developments
- Capacity: 10-20kg/hr
- Power Supply: 220V/1KW
- Gross weight: 80kg

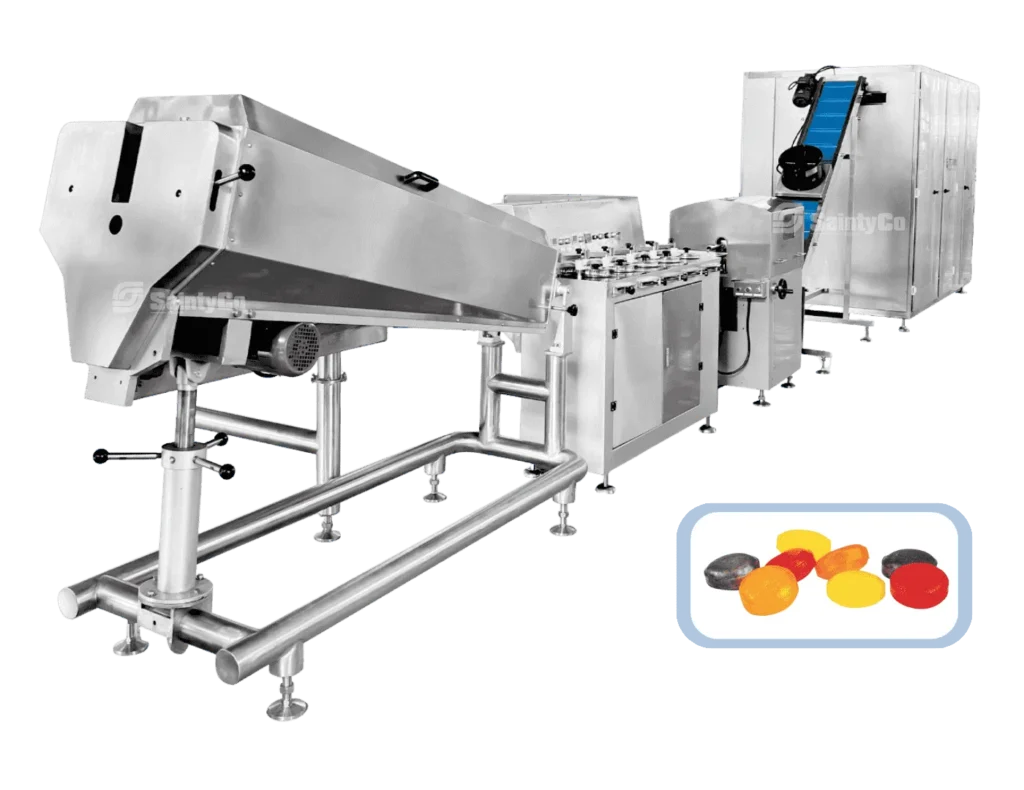

Automatic Die-Forming Lines
| Model | DF-150 | DF-200 | DF-300 | DF-400 |
|---|---|---|---|---|
| Capacity | 100kg/h | 200kg/h | 300kg/h | 400kg/h |
| Power | 20kw | 18kw/380V | 38kw/380V | 38kw/380V |
| Steam Consumption | 100 kg/h | 200 kg/h | 400 kg/h | 400 kg/h |
| Steam Pressure | 0.5-0.8 Mpa | 0.5-0.8 Mpa | 0.5-0.8 Mpa | 0.5-0.8 Mpa |
| Air Consumption | 0.25 m³/min | 0.25 m³/min | 0.25 m³/min | 0.25 m³/min |
| Air Pressure | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa |
| Length | 14m | 16m | 18m | 22m |
| Weight | 3000kg | 4500kg | 8000kg | 8000kg |
Hard Candy and Lollipop Production Options
Lollipop Options for Die-Forming Lines
- Swap to a lollipop forming die; enable the automatic stick feeder.
- Set rope diameter to the die and sync the cutter to stick pitch.
- Match stick length/Ø to the die; tune cooling speed.
- Output round or flat pops with consistent weight and smooth finish.

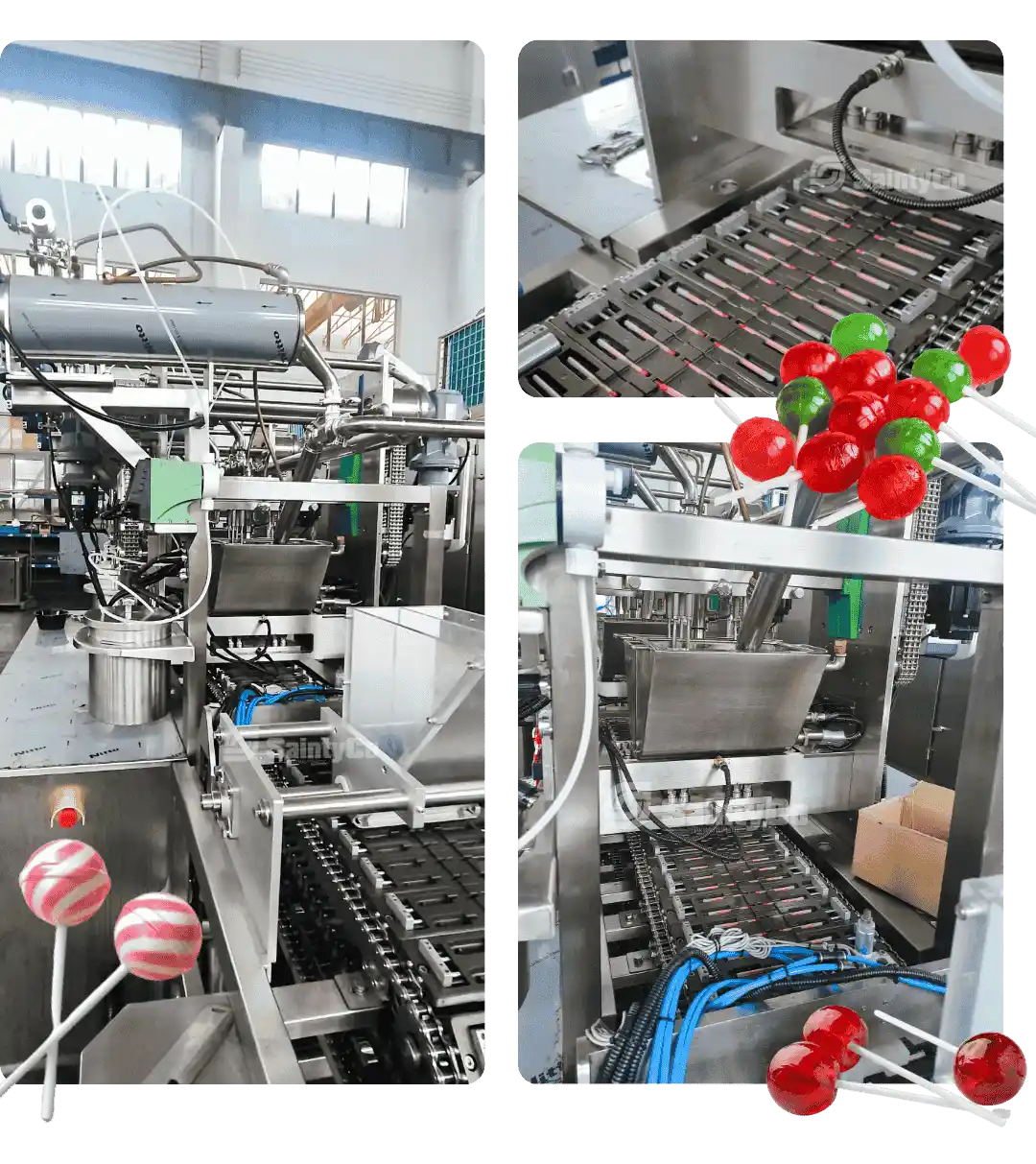

Lollipop Stick Insertion for Depositing Lines
- Ball pops: deposit first; unit inserts sticks, keeps alignment during cooling.
- Flat pops: sticks load into molds first; the servo depositor fills each cavity.
- Per-mold control for alignment, clean release, and repeatable weight
- Quick mold changeovers; supports sugar-free and multi-color.
Capacity and Product Changeover Considerations
Continuous forming enables high-speed production with minimal waste while maintaining hygiene and quality. Output ranges from 100 to 300kg/h, ready to scale with your production needs.Join 200+ candy manufacturers who trust SaintyCo to deliver consistent, high-quality hard candy — stick by stick.
Equipment Services and Project Support
Spare Parts and Technical Support
Spare part support, technical assistance, and a 2-year warranty are our fundamental commitments to customers.
Rapid access to customer support via chat, email, phone, or on-site assistance when required. Be assured that GummyGenix will have your back if you need us!
Choose Hard Candy Equipment by Product & Process
GummyGenix by SaintyCo provides hard candy making equipment and packaging systems built for yield, uptime, and food-grade compliance.
Our technology helps you develop new products quickly. Supported formats include one–four color, striped, layered, center-filled, and multi-component—via simple configuration changes.
Applications for Commercial Hard Candy Equipment
- Food & confectionery brands – Mint · Fruit · Sugar-free · Two-color · Lollipop-ready.
- Nutraceutical & OTC – Herbal/Throat · Vitamin · In-line dosing.
- Lollipop producers – Flat/Die-formed · Stick insertion · Single/Double-twist · Flow-wrap.
- Contract manufacturers & co-packers – Fast changeover · Multi-product lines · 150–600 kg/h · Die-forming.
- Pilot & R&D labs – Compact · Trials · Quick molds · Small footprint.

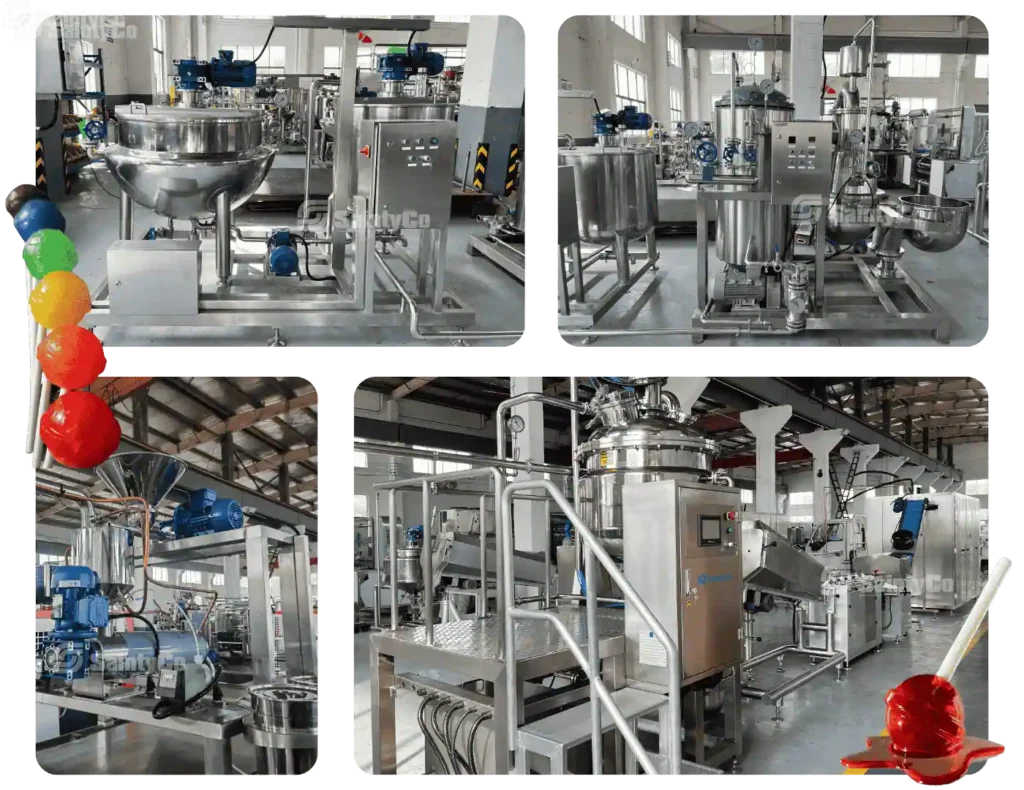

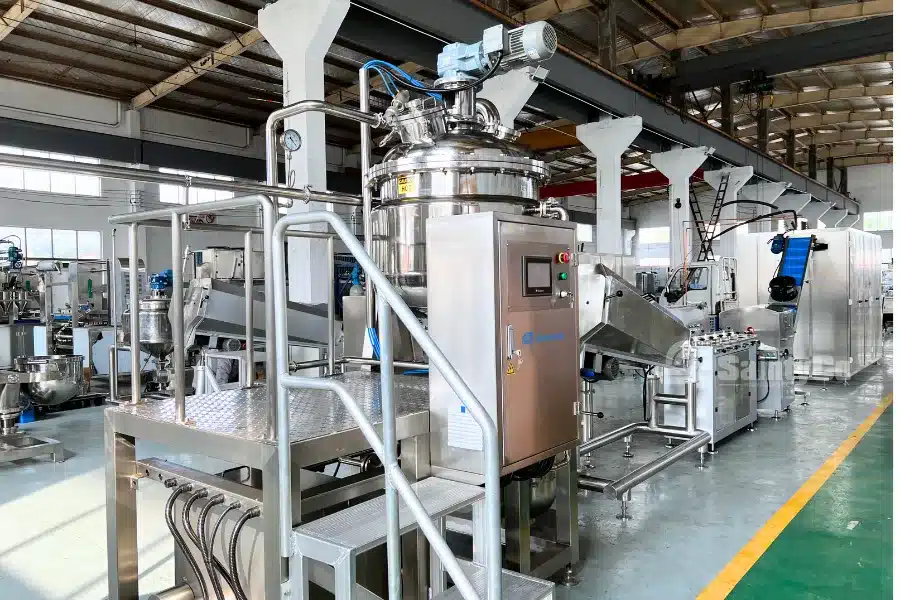

Manufacturing and Line Integration
GummyGenix, powered by SaintyCo, supplies candy, gummy, and popping boba machinery to manufacturers of functional and medicated products worldwide — SaintyCo International Group has even deeper roots, with 25+ years of designing, developing, and manufacturing advanced pharmaceutical machinery.
We build CE- and cGMP-compliant commercial candy making equipment across scales — from cooking and depositing to packaging — for hygienic production of hard candies, flat lollipops, and medicated lozenges.
With in-house R&D, CNC machining, and full FAT before shipment, we ensure quality and innovation — helping clients across confectionery, nutraceutical, and pharma, from private-label brands to contract manufacturers, keep production lines delivering day after day.






countries SERVED
Happy Clients
Avg. Production Growth
Installed depositing lines
Your success is our priorityand we'll be there every step of the way
Review Production Goals and Site Requirements
Your plant layout, capacity goal, candy type, and budget guide how we customize your hard-candy production line. Our automation team — experienced in confectionery manufacturing — applies field know-how and years of system design to deliver hard candy making equipment that runs at high efficiency and fits your process.
Book a free consultation anytime via WhatsApp, call, or email — whatever’s easiest for you. No pressure, just practical advice.
International Standards Organization (ISO) 9001:2015
CE Electrical Certification
Food and Drug Administration (FDA) Quality Standard & Certification
UL Certification (US)
SGS-CSTC Testing Inspection Certification
Documentation and Compliance Requirements
SaintyCo’s hard candy production solutions meet international compliance standards, including cGMP, GMP, 21CFR part II, and CE. Our decades of R&D and manufacturing expertise in confectionery and pharma-grade automation support global factories with reliable, high-quality equipment, from die-forming or depositing lines to fully integrated production systems.
Factory Acceptance Testing
All GummyGenix equipment undergoes a thorough Factory Acceptance Test (FAT), including visual inspection, functions, controls, and safety checks. We test all components for accuracy and calibration—covering temperature, pressure, speed, rotations, dosage, and safety—and document every step to ensure full traceability.










Shipping and Delivery Coordination
Purchasing equipment abroad involves securing favorable freight rates, choosing the right ports, and handling customs efficiently. With over 20 years of export experience, we streamline these processes for a seamless acquisition. All machinery is shipped in export-compliant wooden crates, ensuring protection that meets national standards.
By collaborating with top-tier logistics providers, we ensure your machinery arrives safely and on time, enabling a swift transition to production.
Installation, Maintenance and Technical Support
Our Technical Support offers detailed manuals, quick installation, spare parts, and continuous assistance from factory-trained techs and a global network of independent technicians, ensuring smooth operations with minimal downtime.
Our biggest achievement is a "Happy Customer"
Request a Commercial Hard Candy Equipment Review
Hard Candy Equipment Expertise Built Around Your Production Needs
- Awareness of your needs
- Recommend solutions for your reference and comparison
- Reasonable Pricing
- 360° After-Sales Support
- HARD CANDY MACHINE FORM
- HARD CANDY PACKAGING SOLUTION FORM
- CUSTOM HARD CANDY MOLD FORM
- service support form
Hard Candy Making Machine Form
Note: Once all the fields are completed and the submit button is clicked, you will be redirected to a form submission confirmation page. If this does not happen, the form was not submitted successfully. Double check ALL fields are filled out correctly to submit successfully.
Hard Candy Packaging Solution Form
Note: Once all the fields are completed and the submit button is clicked, you will be redirected to a form submission confirmation page. If this does not happen, the form was not submitted successfully. Double check ALL fields are filled out correctly to submit successfully.
Custom Hard Candy Mold Form
Note: Once all the fields are completed and the submit button is clicked, you will be redirected to a form submission confirmation page. If this does not happen, the form was not submitted successfully. Double check ALL fields are filled out correctly to submit successfully.
Service & Parts Request Form
Note: Once all the fields are completed and the submit button is clicked, you will be redirected to a form submission confirmation page. If this does not happen, the form was not submitted successfully. Double check ALL fields are filled out correctly to submit successfully.
Frequently Asked Questions About Hard Candy Making Machines
Still can’t find the information you want? Don’t hesitate to contact us.
To purchase SaintyCo's hard candy equipment, simply contact us today to request a quote. Share your production specifications, and our experts will guide you in selecting the Professional Confectionery Machine for Lollipop, Hard Candy, Gummy, etc for your needs. We ensure a seamless and tailored solution for your candy production endeavors.
SaintyCo's manufacturing machines are constructed with food-grade 304 or 316 stainless steel to ensure strength, longevity, and compliance with food sanitation standards. Our commitment to quality materials guarantees reliability and hygiene in candy production.
Yes. SaintyCo provides customized hard candy machines that can switch between lozenges, striped candies, center-filled candies, and flat or round lollipops by changing molds and adjusting depositing settings — all in one line.
SaintyCo's hard candy machines are available in a range of capacities — from 10kg/hr lab-scale models to full-scale lines running over 500kg/hr. Whether you're scaling up or just starting, we offer production lines to match your exact output needs.
Employment of a fully automatic hard candy manufacturing device allows speeding up this line's performance while keeping quality stable as well as decrease labor costs. It does everything from cooking to forming automatically therefore ensuring accurate production within the cycle of confectionery.
