How a Texas CBD Startup Launched Gummy Production in Two Months on a $35,000 Budget
A five-person Texas team used a compact DM-20S setup to launch vegan pectin CBD gummies within a $35,000 project budget—without adding space or labor
After ten years in the CBD market, the founder decided to bring gummy production in-house. Two failed pectin-gummy trials showed that the main gap was not market knowledge but process control across formulation, cooking, depositing and drying.
Working with Leo and the GummyGenix team, the startup translated its staffing, facility and product constraints into a compact, staged setup—creating a practical path to production without requiring a larger automated line at launch.
Case Overview: Texas CBD Gummy Startup Equipment Project
| Project factor | Case detail |
|---|---|
| Customer | Texas CBD business with a five-person team |
| Product plan | Broad-spectrum, vegan, gluten-free, pectin-based gummies in Strawberry and Tropical Fruit flavors |
| Trigger | Two failed trial batches cost approximately $4,000 |
| Monthly planning target | 800,000 gummies per month |
| Project budget | $35,000 |
| Core equipment | DM-20S depositor, 100L tilt kettle, custom molds, drying trays and dollies, and a polishing pan |
| Primary result | Gummy production launched within two months |
| Supporting results | No facility expansion or added labor; customer later reported a 30% increase in production output |
| Project timeline | Production launched within two months; customer output update recorded in February 2023 |
Customer confidentiality: The customer’s identity has been withheld for commercial confidentiality. “Jason” is a pseudonym. The project details are based on GummyGenix project records, and post-launch results are identified as customer-reported.
The Challenge: Why the Texas CBD Startup Needed a Compact Gummy Production Setup
Two failed batches exposed a process gap
Before reaching out, Mr. Jason’s team had already tried twice on its own. Both trial batches failed, resulting in approximately $4,000 in lost materials and effort. Although the business understood the CBD market, the team still needed practical support for pectin-gummy formulation, temperature control, depositing, demolding, drying and finishing.
The project had to fit an existing facility and a five-person team
The constraints were hard: the same building, the same five people, and a $35,000 budget. Expanding the facility or hiring a production crew was never part of the plan, so every machine had to earn its floor space and be simple enough for the existing team to run.
The product brief added formulation and process constraints
The planned gummies were broad-spectrum, vegan, gluten-free and pectin-based, in Strawberry and Tropical Fruit flavors. Consistent depositing, controlled cooking and drying, and finished-batch dose verification were project requirements. Finished-product cannabinoid content, testing, labeling and legal compliance remained the customer’s responsibility.
The production plan called for 800,000 gummies per month
The monthly production plan shaped the equipment and workflow requirements—from depositing capacity and mold count to cooking, drying and finishing. The 800,000-gummy figure was used to plan the setup; actual monthly output would depend on gummy weight, mold configuration, shifts, downtime and downstream operations.
Our Solution: DM-20S Gummy Production Equipment Configuration for This Project
How the Equipment Plan Was Developed
Working directly with Mr. Jason, Leo and the GummyGenix team translated the startup’s $35,000 budget, five-person team, existing facility and pectin-based product brief into a staged equipment plan. The selected configuration covered syrup preparation, depositing, molding, drying logistics and finishing without requiring a larger automated line at launch.
1. DM-20S Gummy Depositor
- Purpose: The DM-20S gummy depositor was the core depositor for the startup’s pectin-based gummy process.
- Key Features:
- Flexible Production: Designed for both pectin- and gelatin-based CBD/THC gummies.
- Efficiency: Produces up to 10,000 gummies/hr, making it ideal for startups and R&D.
- Space-Efficient: Requires 120 sq ft, including the integrated demolding device.
- Quality & Hygiene: Built with pharmaceutical-grade stainless steel to support hygienic production.
- Quick Setup: The plug-and-pull design allowed one trained operator to complete setup within one hour for this project.
- Easy to Learn: Full operator training was completed in 30 minutes for this project.
- Standards Documentation: Supplied project documentation referenced FDA, cGMP, GMP and ISO 9001 considerations.

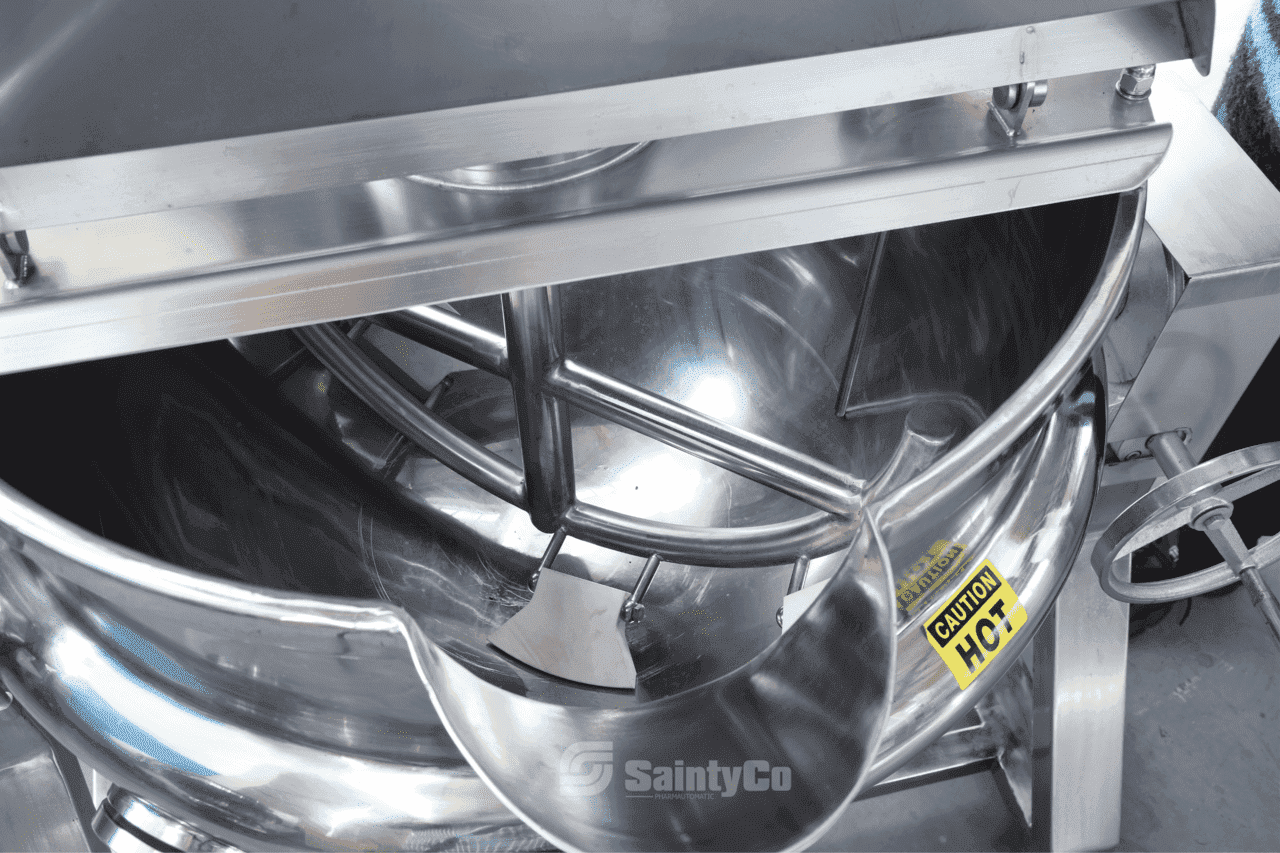

2. 100L Electric Tilt Sugar Dissolving Jacketed Kettle
- Purpose: The 100L tilt kettle provided controlled heating and mixing for pectin-gummy syrup preparation.
- Key Features:
- Precise Heating & Mixing: Temperature and mixing controls supported a consistent syrup texture before depositing.
- Faster Preparation: Project materials report a 20% reduction in preparation time from the advanced heating configuration.
- Food-Contact Safety: Uses SS 316-grade for food-contact components.
3. Sugar/Wax Polishing Pan
- Purpose: The sugar/wax polishing pan supported the finishing stage after drying.
- Key Features:
- High-Throughput Finishing: Handles 70–90 kg per hour, based on the project specification.
- Adjustable Speed Control: An inverter and control panel allowed the operator to adjust the finishing speed.
- Clump-Free Mixing: The pan was selected to support smooth, consistent coating without clumping.

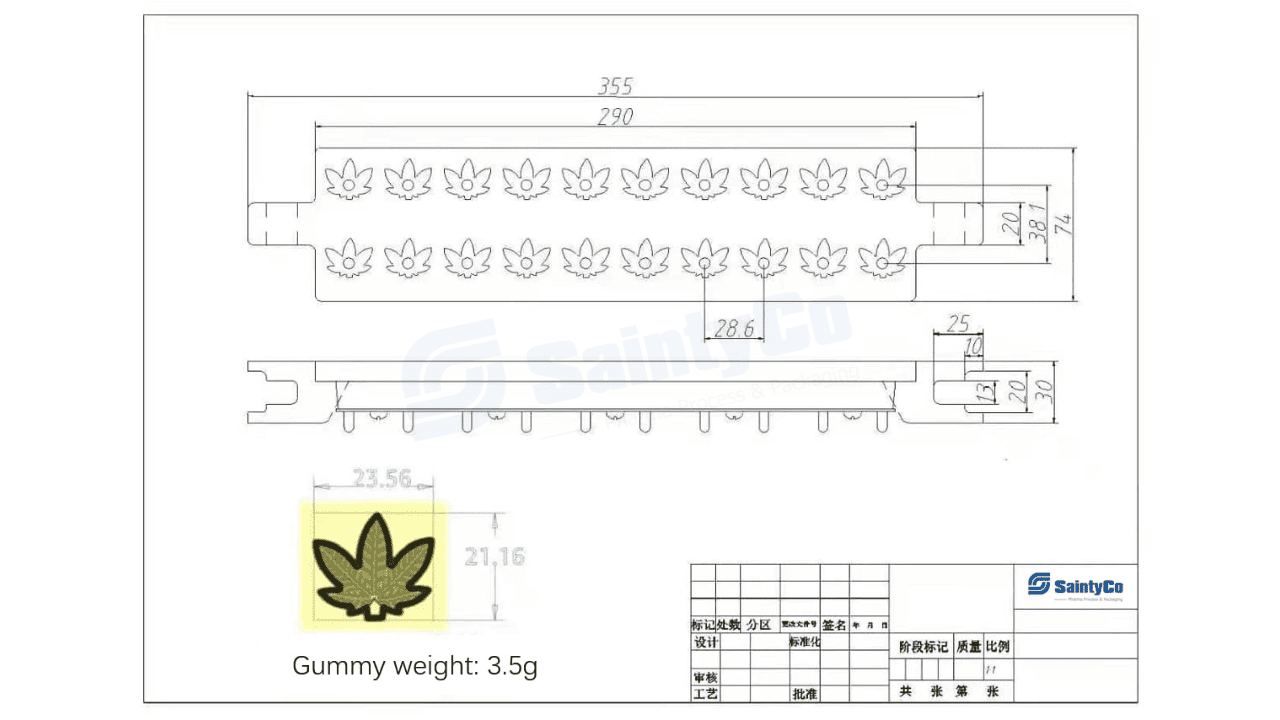

4. Gummy Metal Molds (100 pieces)
- Purpose: The 100 custom metal molds supported consistent depositing, release and product presentation.
- Key Features:
- Consistent Molding: Each mold had 20 cavities to support uniform pieces across the planned workflow.
- Easy Release: The project molds used a Teflon-coated surface with stainless-steel ejection.
- Custom Branding: The molds included the customer’s logo imprint.
- Flexible Shapes: The mold design could accommodate standard or custom gummy shapes.

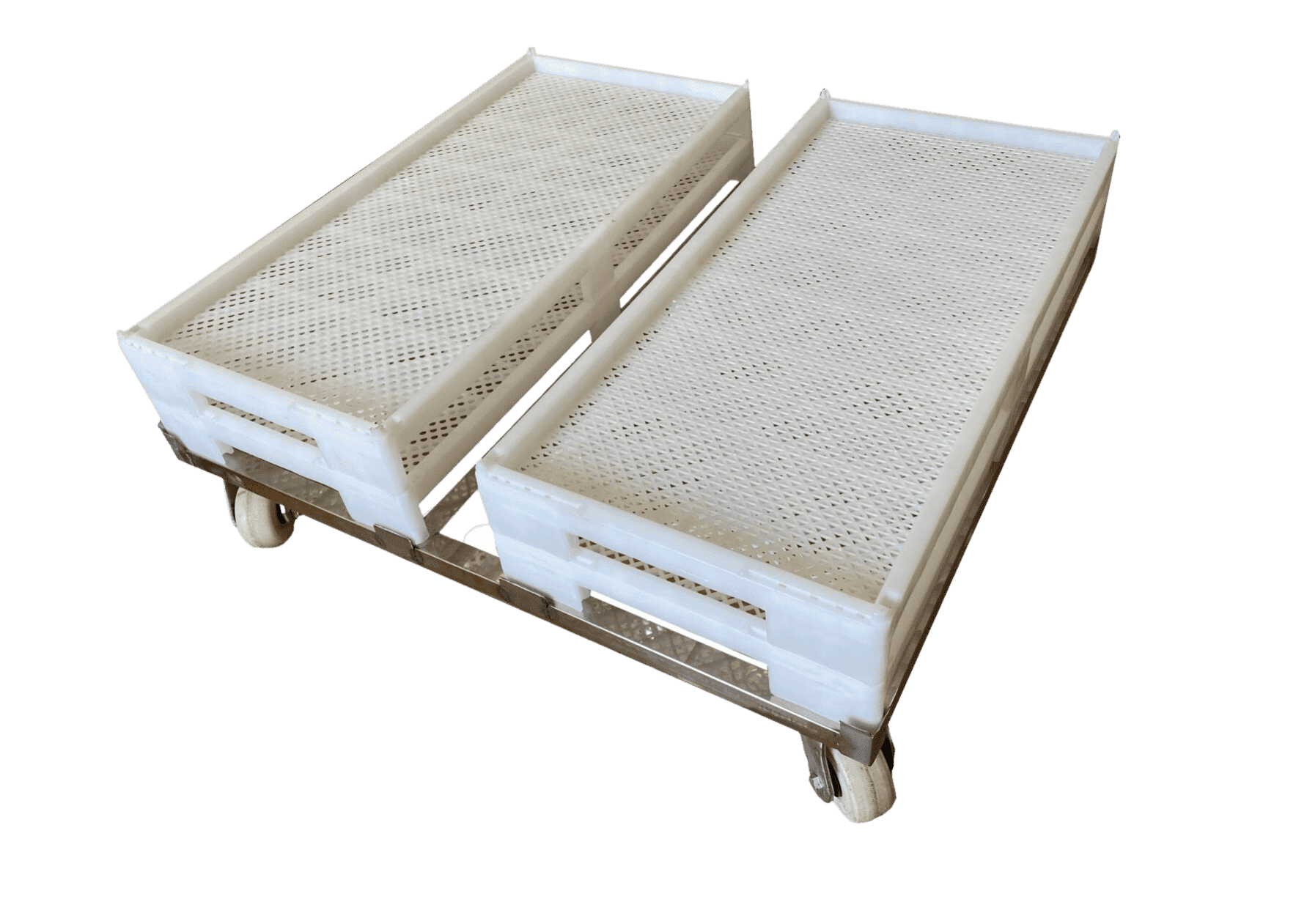

5. Drying Trays (60 pieces) & Dry Tray Dollies (2 pieces)
- Purpose: The drying trays and dollies supported drying logistics inside the customer’s existing facility.
- Key Features:
- Practical Load Capacity: Each tray was specified for a 2–3 kg gummy load.
- Durable Construction: The project trays used a PE/PP blend.
- Space-Saving Storage: Reported 40% less storage space from the stackable design.
- Mobile Handling: The mobile-dolly specification supports up to 50 trays.
- More Efficient Workflow: Project materials report a 25% workflow improvement from using the mobile dollies.
Beyond the Equipment: Process and Documentation Support
The equipment package also included formula consultation, setup guidance, operator training and ingredient-sourcing introductions. This support helped Mr. Jason’s five-person team address the practical gaps revealed by its two unsuccessful trial batches and prepare the workflow from cooking and depositing through drying and finishing.
For this Texas CBD project, the supplied equipment documentation referenced FDA, cGMP, GMP and ISO 9001 considerations. GummyGenix supported the equipment and production-process side, while Mr. Jason’s team remained responsible for finished-batch cannabinoid testing, labeling, licensing and applicable requirements. See our US gummy production compliance considerations.
The Implementation: How the Startup Moved from Failed Batches to Initial Production
1. Define the product and production brief
The two teams aligned on the brief: the pectin-based product, the five-person operating team, the existing facility, the budget and the monthly planning target.
2. Match equipment to the process
GummyGenix configured the DM-20S with a 100L tilt kettle, custom metal molds, drying trays and dollies, and a polishing pan to cover cooking, depositing, drying logistics and finishing.
3. Review the formula and batch process
Formula consultation focused on pectin processing, flavor and bitterness management, temperature control and handoffs between cooking, depositing, demolding, drying and polishing.
4. Set up the equipment and train the operator
Setup guidance and operator training covered machine preparation, basic operation, cleaning and the sequence required for an initial production run.
5. Launch, observe and adjust
The customer moved into gummy production within two months, then kept adjusting the process as experience with the new setup grew.
Results: Launch Timeline, Budget and Production Output for a CBD Gummy Startup
The startup launched gummy production within two months using the existing facility and the same five-person team, without additional hires. In a February 2023 follow-up, the customer reported that production output was about 30% higher than when the new setup began operating.
For a first-time gummy manufacturer, the primary case outcome was a working production process that the existing team could operate, with room in the project budget for the steps that followed launch.
| Result | Case context |
|---|---|
| Production launch | The customer launched gummy production within two months |
| Project budget | The equipment and support plan was developed around this case's $35,000 project budget |
| Facility | The compact setup used the customer's existing facility without expansion |
| Staffing | The five-person team launched production without adding labor |
| Production output | By February 2023, the customer reported a 30% increase in production output |
The case does not establish a guaranteed monthly output. Actual capacity depends on product weight, mold design, recipe, operating speed, downtime, drying, finishing, packaging and shift schedule.
The Outcome: What the DM-20S Setup Changed for the Startup
The project gave the startup a staged path into gummy manufacturing instead of requiring a larger automated line at launch.
Cooking, depositing, drying logistics and finishing were planned as one workflow, while recipe and operator support addressed the team’s immediate experience gap. As demand and operating data develop, the customer can evaluate additional automation based on measured bottlenecks rather than on an unverified capacity assumption.
For equipment options beyond this startup project, see our commercial gummy manufacturing equipment overview.
